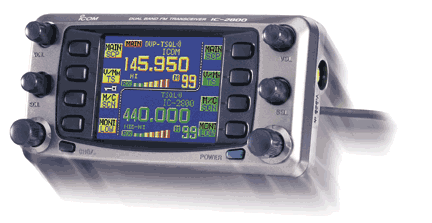

ICOM 業餘
雙頻
車用無線電收發機
最新, 最頂級, 最先進的 2 米/440 MHz 車用雙頻機種
(四級認証機種)
附加了顯示器的功能
| 尺寸 (控制面板): 5.5 (W), 2.75 (H), 1.3 (D), 10.2 oz |
| 尺寸 (主機體): 5.5 (W), 1.6 (H), 6.6 (D), 2 lb, 9 oz |
| 50 Watts (2M), 35 Watts (440 MHz), 20 W, 10 W, 5 W |
| Rx: 118 - 174 MHz, 430 - 450 MHz (只有業餘頻率在保證範圍內) |
獨立, 高解析度, 3" TFT 彩色 LCD 顯示器
顯示真實的火腿通訊與啟開您新的娛樂空間
| 更適用於車上操作的開擴可視角度 |
| 軟鍵標示, 在各種強弱光線的條件下均易於閱讀 |
| 480 像素寬e (W) x 234 像素高 (H) 解析度 |
| 可顯示任何 NTSC 格式影像如 SSTV, CCD 攝影鏡頭等訊號輸入 |
控制面板上的視訊連接頭
可輸入大多數的 VCR 攝影機或數位照像機
| 可調整亮度與對比 |
| 獨立的顯示模式以適用於特殊的用途 |
功能完整的分離式控制面板
| 連接線內含 |
| 主機與面板固定架內含 |
獨立的旋鈕及按鍵
| 兩個頻帶均有獨立的,旋鈕, AF, squelch 及 4 個功能鍵 |
| 雙頻同工或交互操作 |
其它特殊的強大功能
更詳細 的規格附件說明
IC-207H
2 米/430 MHz 超小型雙頻收發機
(四級認証機種)
雙頻機種, 單頻機的價位
| 尺寸: 5.5 (W), 1.6 (H), 8.4 (D), 3.1 lb |
| Faceplate Dimensions: 4.5 |
| 25 (45) Watts of Power on VHF, 25 (35) Watts on UHF |
| Works One Band at a Time! Switch Between Bands with a Touch of the Large
Blue Button |
| Transmit 144-148 MHz and 440-450 MHz |
| Wideband Receive includes Air Band: 118-174 MHz, 440-450 MHz |
| 9600 Baud Packet Ready 6-Pin Connection Point on the Back Panel |
| CTCSS Encode/Decode |
| 162 Memory Channels |
| Auto Repeater Function |
| Multi-Function Backlit Remote Control Microphone |
| Optional Wireless Microphone |
| 4 Power Settings Per Band |
| Big Dials, Big Keys, Big, Bright Display = Easy to Use on the GO! |
| Cloneable with Optional Software and Cloning Cable |
IC-2710H
先進的 2 米/430 MHz 車用雙頻收發機
| Dimensions: 5.5 (W), 1.6 (H), 8.4 (D), 3.1 lb |
| 50 Watts of Output Power on VHF, 35 Watts Output on UHF |
| 2.4 W Audio Output |
| 144-148 MHz and 440-450 MHz |
| 220 Channels |
| 8 Channel DTMF Memory Encoder Function |
| Multi-Function Remote Control Microphone |
| V/V, U/U Simultaneous Receive |
| 50 Frequency Subaudible Tone Encoder Standard |
| Independent Tuning Knobs |
| Built-In Duplexer |
| Cloneable with Software and OPC-646 |
| Infrared Microphone Optional (HM-90) |
更詳細 的規格附件說明
|
