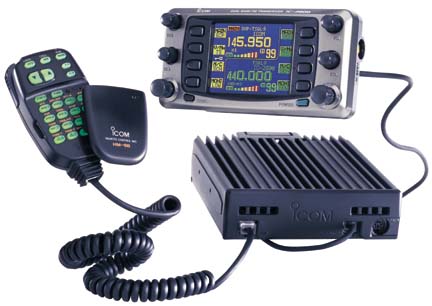

IC-2800H

資料取自於原廠型錄

IC-2800H 規格

一般

頻率範圍

版本	頻率範圍
版本	VHF	UHF
U.S.A.	Tx:144-148; Rx: 118-174^*1	430-450^*2
South America	Tx:144-148; Rx: 118-174^*1	Tx: 430-440; Rx:400-530^*3
Europe, Taiwan	144-146	430-440
Italy	Tx; 144-148; Rx: 136-174^*1	Tx: 430-440; Rx:400-530^*3
Asia	Tx: 144-148; Rx: 136-174^*1	430-440
^1 Guaranteed 144-148; ^2Guaranteed 440-450; ^*3Guaranteed 430-440;

Mode: FM, AM (RX only; 118-135.995 MHz)

Number of memory channels: 232 (inc. 12 scan edges, 10 log, 10 repeater and 2 call)

Tuning steps: 5, 10, 12.5, 15, 20, 25, 30 and 50 kHz

Frequency stability: ±10 ppm (-10^°C to +60^°C; )

Power Supply Requirement : 13.8 V DC ±15% (negative ground)

Current drain (VHF/UHF; at 13.8 V DC)

Transmit	Max Power	12.0A / 11.0A
Receive	Standby	1.2 A
Receive	Max Audio	1.8 A

Antenna connector :SO-239 (50

)

DATA Connector: Mini DIN 6-pin

External VIDEO Input: PHONO [RCA (75

)]

Dimensions (projections not included):

Controller	140(W) x 70(H) x 34(D) mm; 5-1/2(W) x 2-3/4(H) x 1-11/32(D) in
Main Unit	140(W) x 40(H) x 165.8(D) mm; 5-1/2(W) x 1-9/16(H) x 6-17/32(D) in

Weight (approximate):

Controller	290 g; 10.2 oz
Main Unit	1.15 kg; 2 lb, 9 oz

Transmitter

Modulation system : variable reactance

Output power (VHF/UHF):

High*	50 W/35 W
Mid-H*	20 W (approx)
Mid-L	10 W (approx)
Low	5 W (approx)
*25 W (High), 15 W (Mid-H) for both VHF and UHF for Taiwan version)

Spurious emissions : -60 dB

Microphone connector : 8-pin modular (600

)

Receiver

Receive system: Double conversion superheterodyne

Intermediate frequencies: 1st 15.65 MHz (VHF), 46.05 MHz (UHF); 2nd 450 kHz (common)

Sensitivity: 0.16µV typical (at12dB SINAD)

SQL Sensitivity: Less than 0.13µV (at threshold)

Selectivity:

Wide	More than 12 kHz/-6 dB	Less than 28 kHz/-60 dB
Narrow (Europe/Italy VHF only)	More than 6 kHz/-6 dB	Less than 18 kHz/-60 dB

Spurious and image rejection ratio: More than 60 dB

Intermodulation rejection ratio: More than 60 dB

Audio Output Power (at 13.8 V DC): More than 2.4 W at 10% distortion with an 8

load

Ext. SP1 connector: 2-conductor 3.5(d) mm (1/8")/ 8

Ext. SP2 connector: 2-conductor 3.5(d) mm (1/8")/ 8

Supplied Accessories:

	Hand microphone (depending on version)
	Separation Cable (3.5 m; 11.5 ft)
	Controller Bracket Kit
	Main Unit Mobile Mounting Kit
	DC power cable
	Spare fuse

All stated specifications are subject to change without notice or obligation.

OPTIONS

WIRELESS REMOTE ACCESSORIES

	HM-90 WIRELESS MICROPHONE Infrared, full remote control microphone. Wired remote control is also possible.
	EX-1759 INFRARED RECEIVER Used to receive control signals from the HM-90
	EX-1513 INFRARED SUBRECEIVER Used with the EX-1759 to extend the controllable area.

MICROPHONES

	HM-98 REMOTE CONTROL MICROPHONE Wired remote control microphone with key backlight. Same as supplied with some versions
	HM-118 HAND MICROPHONE
	HM-118/TA DTMF MICROPHONE
	HM-97 HAND MICROPHONE (with tone call)
	HS-62 FLEXIBLE MOBILE MICROPHONE + HS-15SB SWITCH BOX + OPC-589 ADAPTER CABLE For all around mobile operation

CABLES

	OPC-346/OPC-347 DC POWER CABLES (20 A capacity) OPC-346: 3.0 m (9.8 ft); OPC-347: 7.0 m (23 ft)
	OPC-440/OPC-647 MIC EXTENSION CABLE OPC-440: 5.0 m (16.4 ft); OPC-647: 2.5 m (8.2 ft)
	OPC-872 CONTROLLER EXTENSION CABLE (3.5 m; 11.5 ft)

BRACKETS

	MB-17A MOBILE MOUNTING BRACKET One touch bracket. Transceiver body can easily be attached or removed
	MB-65 MOUNTING BASE Mounts the controller unit in a convenient location. Adjustable angle and direction for optimum positioning
	MB-73 CONTROLLER BRACKET Mounts the controller to a wall or flat surface. Same as supplied

OTHER ACCESSORIES

	CS-2800 CLONING SOFTWARE + OPC-478 CLONING CABLE For quick and easy programming of items, including memory channels, memory names and set mode contents for local repeater frequencies, etc., via PC
	SP-10 EXTERNAL SPEAKER For all-around mobile operation
	UT-49 DTMF decoder

ICOM, Inc. (Japan) is an ISO9001 certification aquired company.
